ZK2115X4/500 Deep hole drilling machine for high pressure oil rail

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: OEM
Πιστοποίηση: CE IS09001
Αριθμό μοντέλου: ZK2115X4/500
Ποσότητα παραγγελίας min: 10
Τιμή: negotiable
Συσκευασία λεπτομέρειες: Ξύλινο κουτί
Χρόνος παράδοσης: βάση σε παραγγελία
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 10000
Λεπτομερής ενημέρωση
No. of spindle: 4 pcs Drilling hole diameter: 5mm---15mm
Drilling depth: 500mm Workpiece: high pressure oil rail of all kinds
Workpiece length: 500mm Skewness of drilling hole: ≤1.0x1000(drilling length)mm
Dimensional precision: IT8 Roughness: Ra0.8—Ra1.6 no obvious iron chip scratch

Περιγραφή προϊόντων

ZK2115X4/500 Four-Spindle Gun Drilling Machine For Automotive Industry With High Efficiency


It’s a four-spindle deep hole drilling machine, which mainly used in high volume drilling concentric hole of small and medium rotary shaft parts. Multi spindle and work position design ensures drill multi workpiece simultaneously. Comprehensive clamping method design with auxiliary support structure makes fast clamping.

Main parameter of machine

Processing Ability

1. No. of spindle: 4 pcs

2. Drilling hole diameter: 5mm---15mm

3. Drilling depth: 500mm

4. Workpiece: high pressure oil rail of all kinds

5. Workpiece length: 500mm

Processing Speed

1. Max. rotary speed of drill stem: 5000r/min

2. Workpiece rotary speed: 0 special clamping

3. Feed speed range: ≤1500mm/min

4. Fast moving speed: ≤2000mm/min

Processing Precision

1. Skewness of drilling hole: ≤1.0x1000(drilling length)mm

2. Dimensional precision: IT8

3. Roughness: Ra0.8—Ra1.6 no obvious iron chip scratch

Machine Power

1. Drill stem motor power: 2x5.5KW

2. Oil pump motor power: 2x7.5KW

3. Feed motor power: 2.3KW

4. Oil temperature coolant machine power: 4.05kw

Hydraulic System

1. Max. flow: 4x40L/Min

2. Max. pressure: 10MPa

3. Filter precision: 20um

4. Oil capacity: 1360L

Basic Dimension & Weight

1. Ground area(L*W*H): 4500*3000*1800(drilling depth refer to 500mm)

2. Distance between drill stem center and floor: 1070mm

3. Height between drill stem and guide rail: 297mm

4. Distances between spindles: 140mm

5. Weight of machine: 6.5T

Machine part processing picture

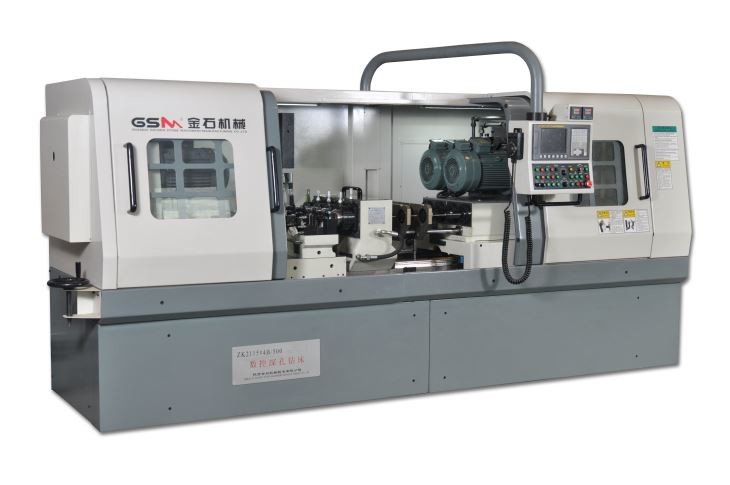

ZK2115X4/500 Deep hole drilling machine for high pressure oil rail 0

Typical parts: high pressure oil rail. The workpiece clamping device is specially design for high pressure oil rail.

ZK2115X4/500 Deep hole drilling machine for high pressure oil rail 1ZK2115X4/500 Deep hole drilling machine for high pressure oil rail 2
