Τόπος καταγωγής: | Κίνα |
---|---|
Μάρκα: | OEM |
Πιστοποίηση: | CE IS09001 |
Αριθμό μοντέλου: | ZK2120X4B-A-500 |
Ποσότητα παραγγελίας min: | Διαπραγμάτευση |
Τιμή: | negotiable |
Συσκευασία λεπτομέρειες: | Ξύλινο κουτί |
Χρόνος παράδοσης: | βάση σε παραγγελία |
Όροι πληρωμής: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Δυνατότητα προσφοράς: | 10000 |
No. of spindle: | 4 pcs | Drilling hole diameter: | 5mm---20mm |
---|---|---|---|
Drilling depth: | 500mm | Outside diameter of workpiece: | ≤φ80mm |
Workpiece length: | 500mm | Skewness of drilling hole: | ≤1.0/1000 drilling length |
Dimensional accuracy: | IT8—IT11 | Roughness of the drilling hole: | Ra0.8—Ra6.3 |

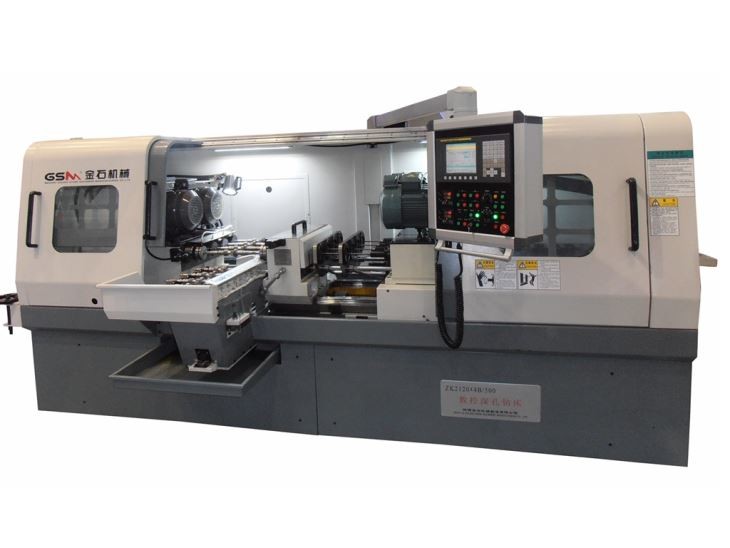

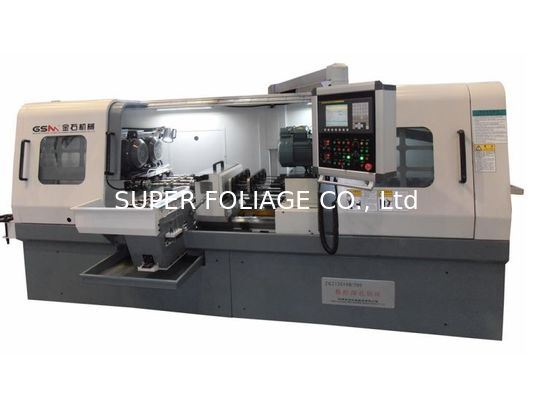

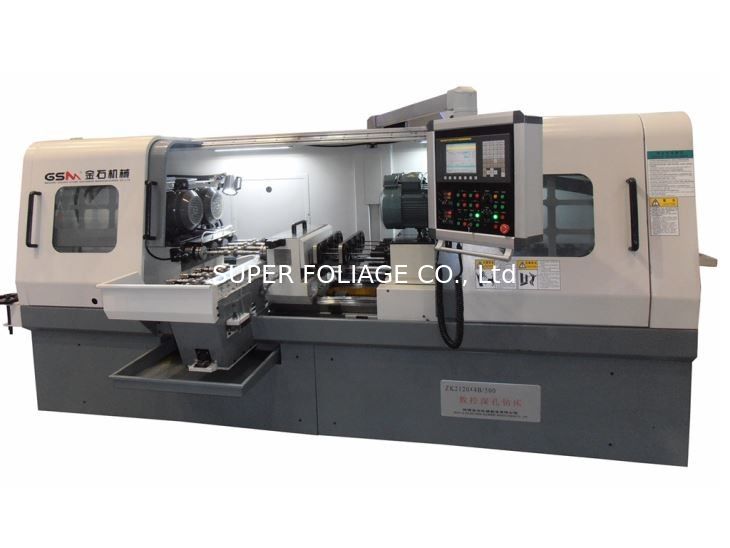

Four-spindle deep hole Drilling Machine with automatic loading mechanism
Automatic loading mechanism of this four-spindle deep hole drilling machine, which greatly save the load and unload time and improve the processing efficiency. It can process eight workpiece at one time, really suitable for the large volume processing.
Main parameter of machine
Processing ability
1. No. of spindle: 4 pcs
2. Drilling hole diameter : 5mm---20mm
3. Drilling depth: 500mm
4. Outside diameter of workpiece: ≤φ80mm
5. Workpiece length:500mm
Processing speed
1. Max. rotary speed of drill stem: 5000r/min
2. Rotary speed of workpiece: 0 r/min.
3. Feed speed range: ≤1500mm/min
4.Fast moving speed: ≤2000mm/min
Processing precision
1.Skewness of drilling hole: ≤1.0/1000 drilling length(workpiece fixed, draw ratio≤100 )
2. Dimensional accuracy: IT8—IT11
3.Roughness of the drilling hole: Ra0.8—Ra6.3
Machine power
1. Drill stem motor power:2X5.5KW
2. Oil pump motor power: 2x7.5KW
3. Feed motor power:2.3KW
4. Oil temperature coolant machine: 4.05KW
Hydraulic system
1. Max. flow: 4x50L/min
2. Max. pressure: 10MPa
3. Filter precision: 20um
4. Oil capacity: 1360L
Basic dimension & weight
1. Ground area(L*W*H):4500*3000*1800 (take drilling length 500mm for reference)
2.Height between the drill stem center and ground:1070mm
3. Height between drill stem center and guide rail:297mm
4. Distance between spindles: 140mm
5. Weight of machine: 6.5T
Machine processing part
